IM-3P SE

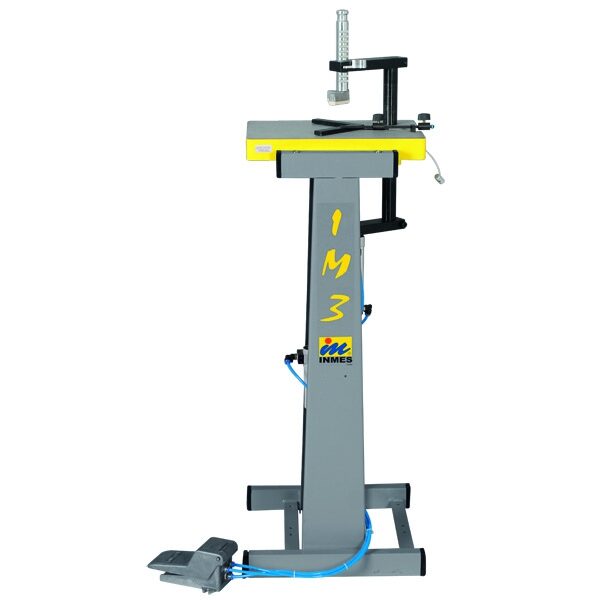

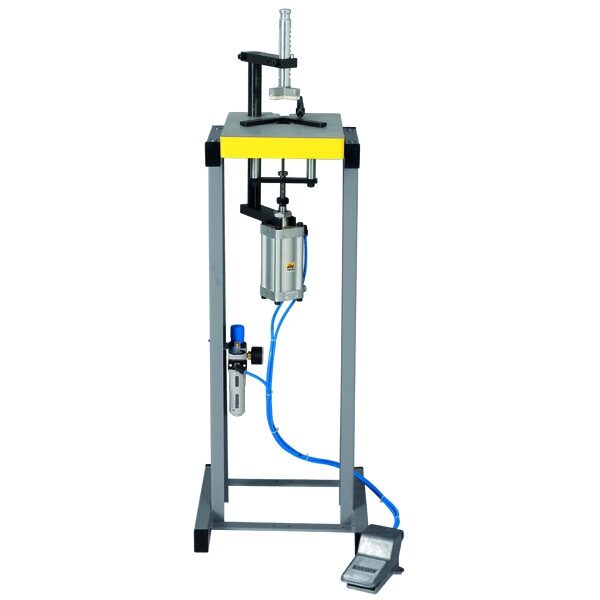

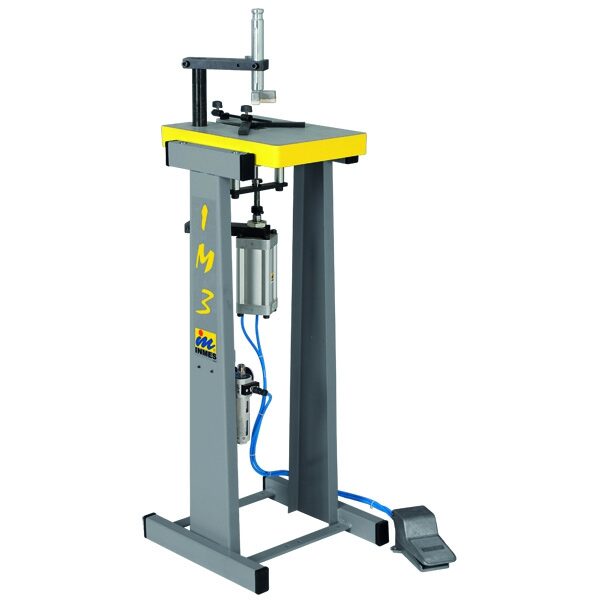

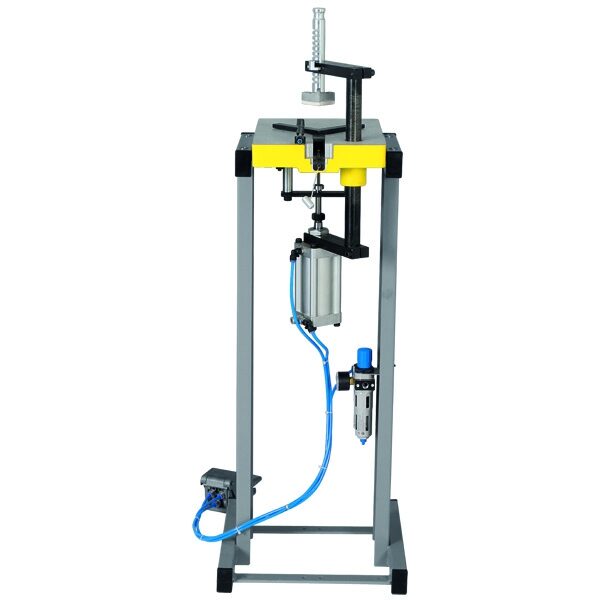

The IM-3P SE Stapler has a pneumatic drive and is indicated for medium and large size frames.
IM-3P STAPLER: QUALITY AND PRODUCTIVITY WITH MORE AGILITY.
A GREAT SUCCESS IN YOUR MANUFACTURE OF FRAMES OR FRAMES.
Used for stapling wooden or plastic profiles when producing medium and high-scale frames and portraits. Suitable for medium and large size frames.
SETTING THE HEIGHT OF FAST DAMPER
The quick height adjustment system of the presser facilitates the work of the molder, because with just a touch of the button it is possible to adjust the height of the presser with agility and precision.
QUICK CHANGE DAMPER
The exclusive magnetic quick-change system of the pressor was developed so that the molder can change the type of presser with agility and speed, increasing the productivity and the quality of the stapling.
for prolonging MESA
To facilitate the stapling of larger frames, Inmes has developed an extension table that also serves to store extra magazines and presses.
RECESS FOR DRAW THE MAGAZINE
More ergonomics to get the magazine. When changing the gauge of the clamp, the operator has a recess in the top of the machine that facilitates the removal of the magazine.
LUBRIFIL UNIT
The IM-3P SE stapler has a lubricating unit to control air quality by filtering and removing moisture from it. With the pressure regulator, it is possible to control the pressure of the pressor and the penetration of the clamp.
Clamps barreta
The IM-3P SE stapler uses Inmes barrettes. “SW” for soft wood and “HW” for medium hardwood, specially designed to provide superior stapling performance.
* Enables the installation of various accessories;
* Production of 1000 to 1500 frames per 8-hour shift;
* Easy to use, with pneumatic actuation. Allows precise stapling, with high productivity;
* As it is pneumatically operated, it does not require the height adjustment of the frame presser;
* Allows the use of INMES “SW” staples for soft wood and “HW” for medium hardness wood;
* System of application of clamps by hammer;
* Accompanies 4 magazines for the 5/7, 10, 12 and 15 mm clamps;
* Comes with 3 quick change presses, models D25, V1, V2;
* Epoxy paint, provides better finish to the equipment and longer service life.
* You can staple in various positions of the frame and even overlap the staples in case of high frame.
TECHNICAL SPECIFICATIONS:
Obs.:Need air compressor for its operation.
*Merely illustrative images.
