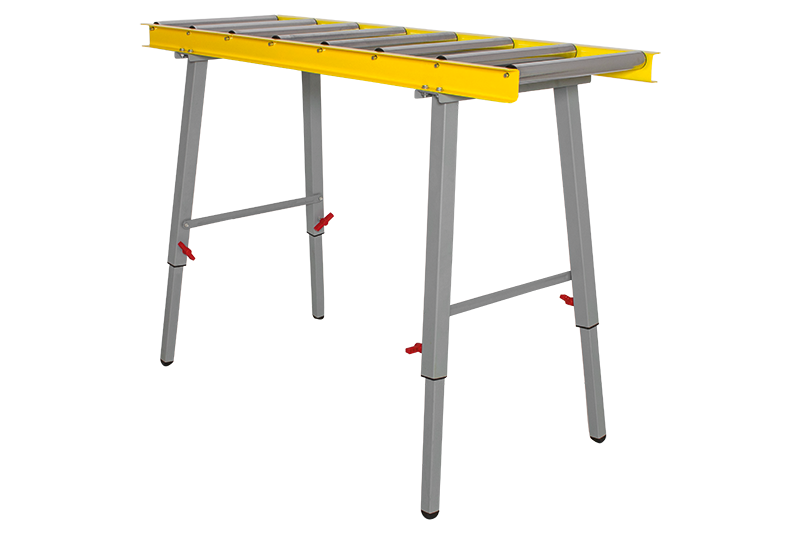

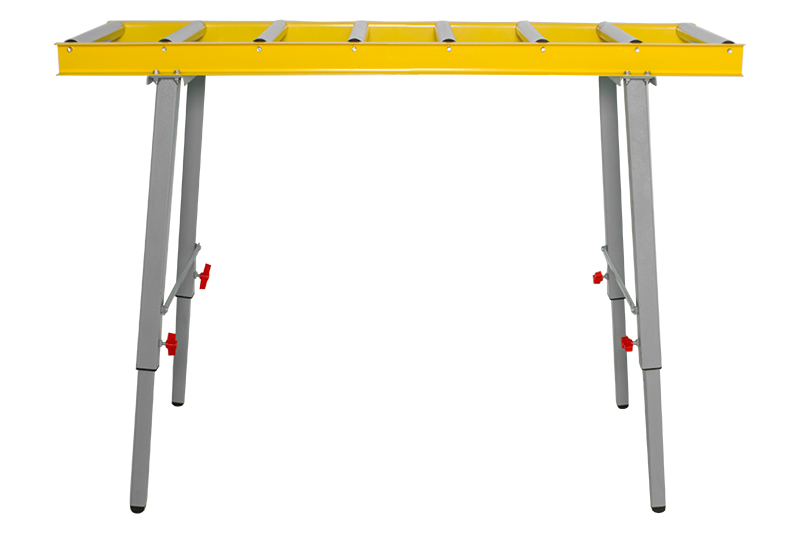

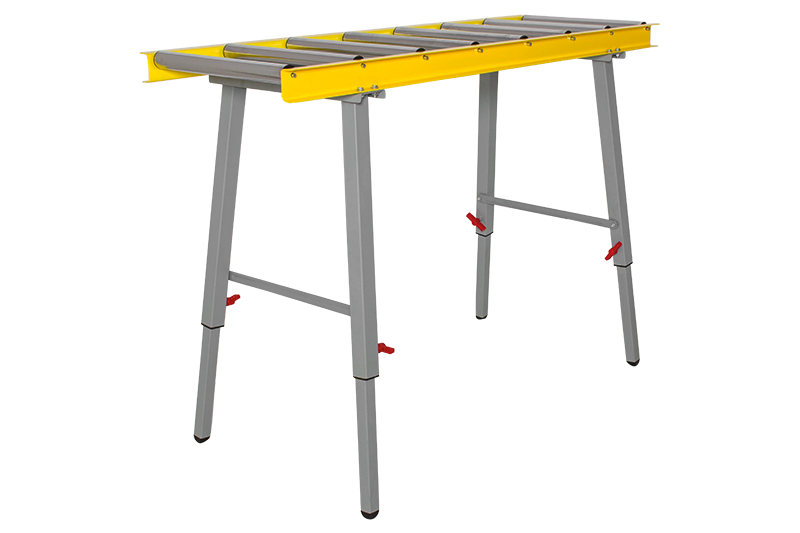

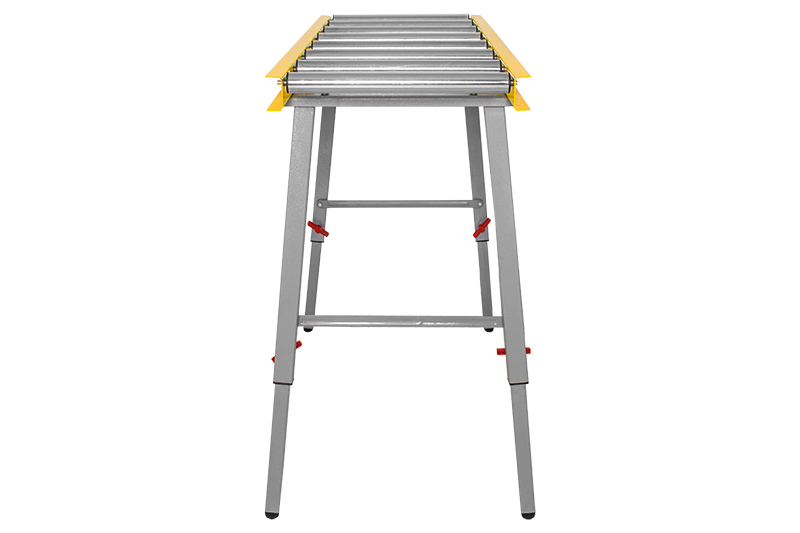

Roller Table IMR-8N

The IMR-8N Roller Table assists as extenders in various equipments, making the handling of the profile much more agile.

Developed to be used as extender in various equipment, when the need to support different types of materials.

The feet of the roller table are finished in plastic, improving grip and preventing the table from slipping.

The height adjustment is made through four handles, allowing the table to be adjusted from 500 to 700 mm.

The rollers are assembled using a spring-loaded pin system, ensuring a perfect fit on the guides.

The IMR-8 table is composed of eight galvanized steel rollers, with a diameter of 40 mm.

* Structure made of steel;
* Composed of 8 galvanized steel rollers;
* Easy height adjustment, easily adapting to various types of machines;

Note: No authorized technician is required for installation.

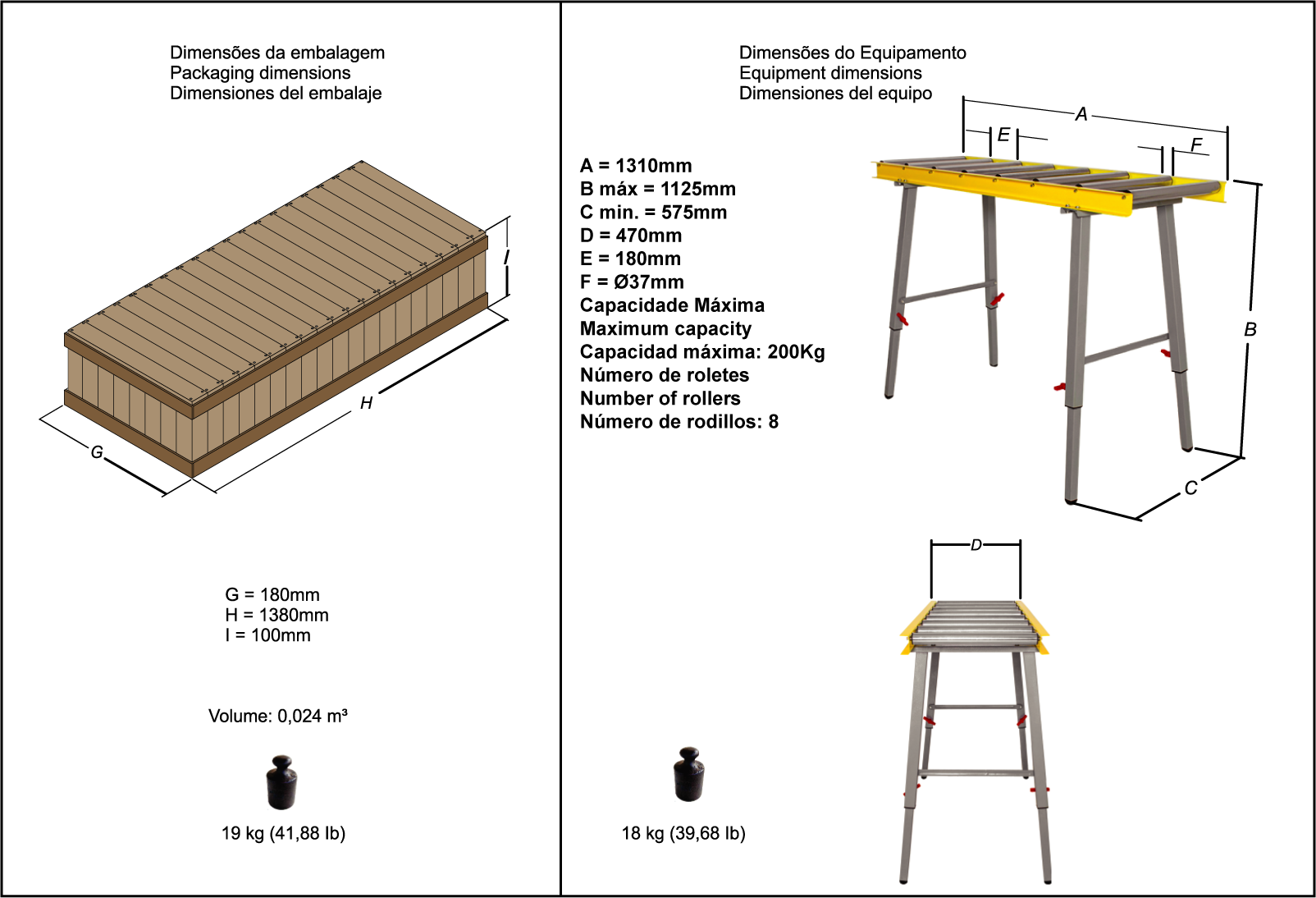

TECHNICAL SPECIFICATIONS:

*Merely illustrative images.
