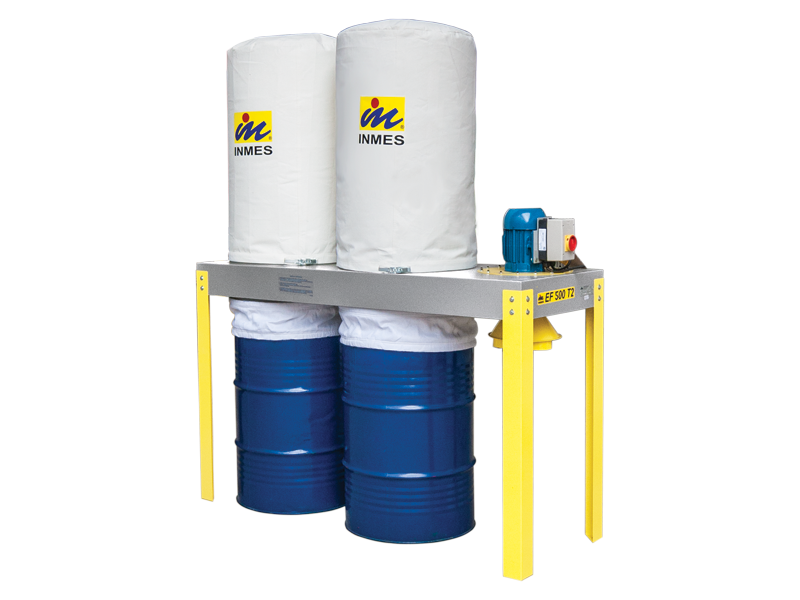

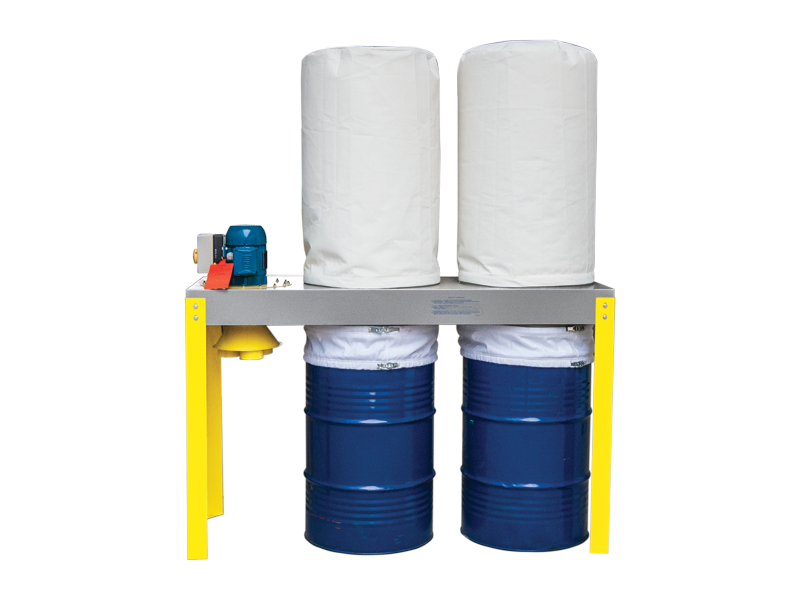

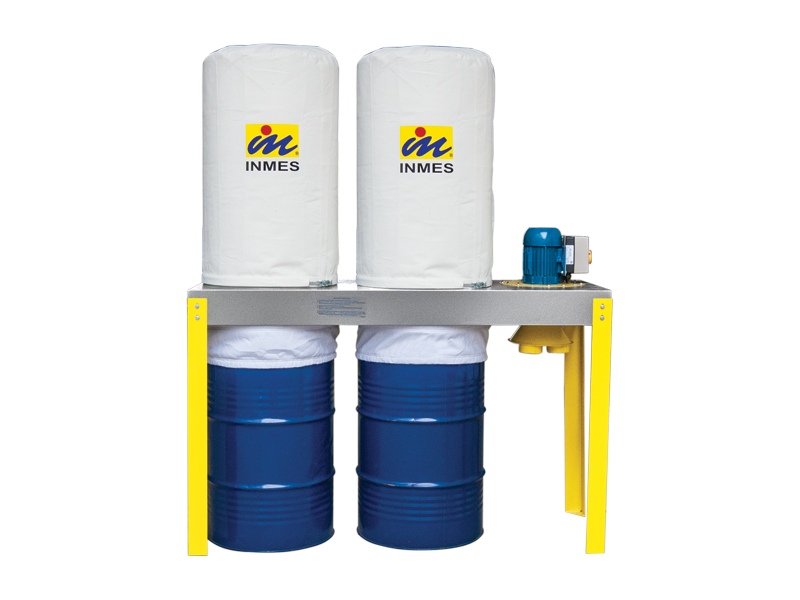

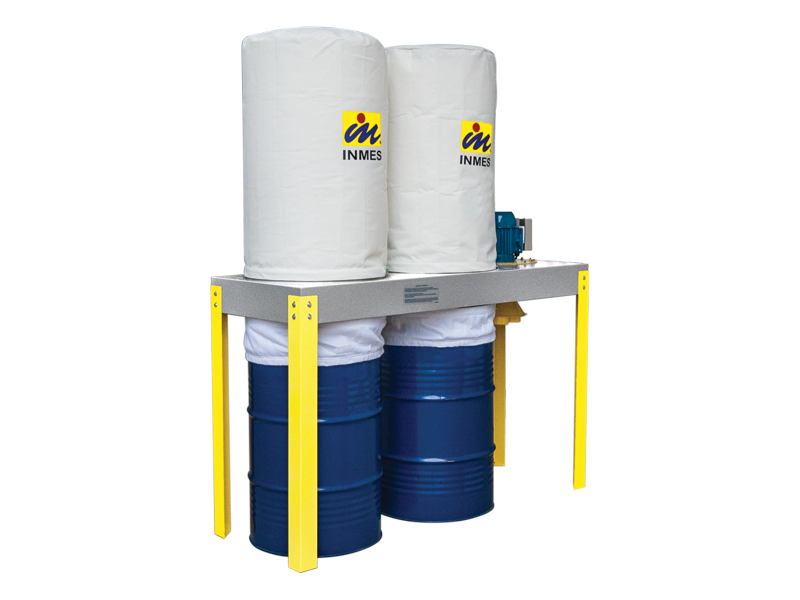

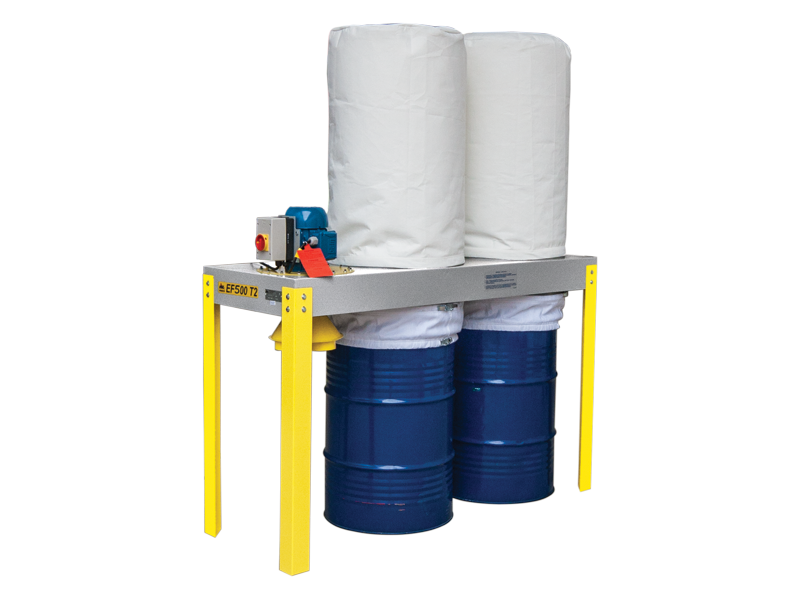

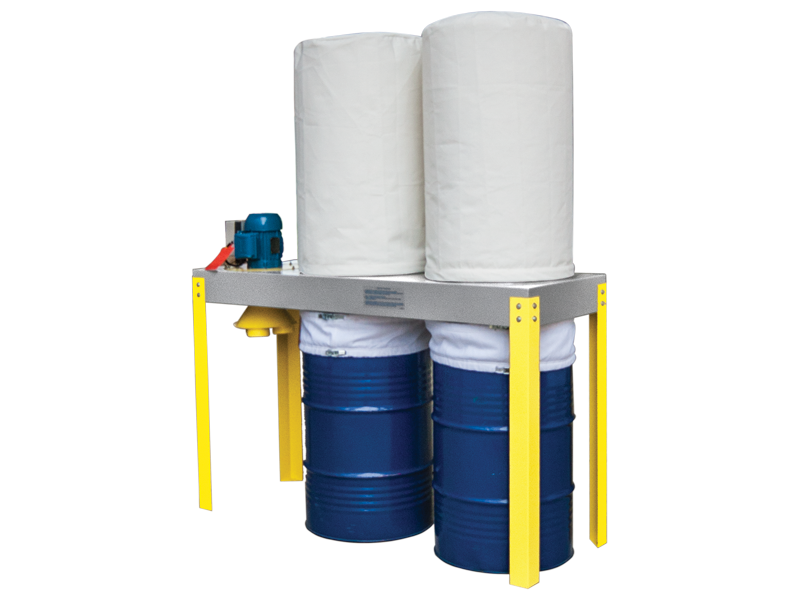

Dust Collecto EF-500 T2
Ensuring a clean environment is essential to provide greater durability of equipment in the factory. The EF-500 T2 Exhaust Fan is the ideal equipment to increase your productivity.
The EF-500 T2 hood is stationary equipment, developed to capture dust in medium-sized machines, such as square cutters, isolators and sanders. It can be used on two or more machines at the same time, depending on the individual needs of each equipment.
INPUT COLLECTOR
O Exaustor EF-500 T2 é comercializado com quatro entradas de 4" (100 mm), para conectar uma ou mais máquinas. Pode receber uma série de entradas com diferentes diâmetros. Confira em acessórios.
KEY DEPARTURE
The EF-500 T2 exhaust is equipped with a high-efficiency WEG motor and on/off switch, with motor overload protection.
FAN
The Inmes exhaust fan is made of aluminum. Greater durability and less risk of spark generation.
TECHNICAL SPECIFICATIONS:
* It has four 100mm (4″) inputs;
* Low noise (See Table);
* Structure in steel painted with epoxy paint, Provides better finishing to the equipment and longer useful life;
* Filter with permeability 150 l/min.dm² at 20 mm CA;
* Drum diameter: 590 mm (23.23") to 600 mm (23.62");
* Altura do tambor: 850 mm (33,47”) a 740 mm (29,13”);
* Volume do tambor: 200 l (52,82 gal.).
Note: No hoses or air ducts included; Drum not included. Consult the factory about the types of powder that can be used.
*Merely illustrative images.
