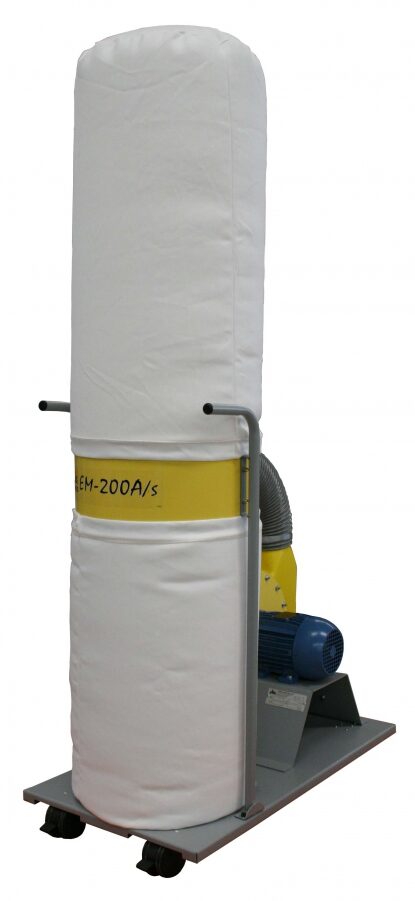

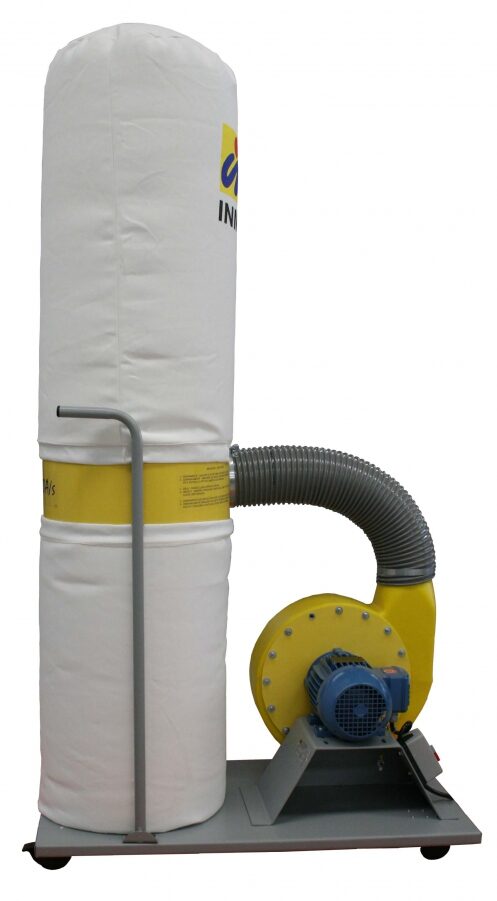

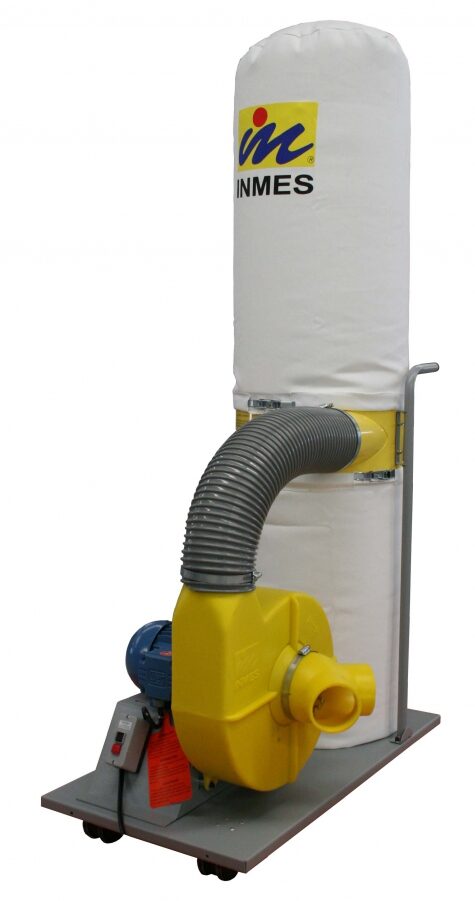

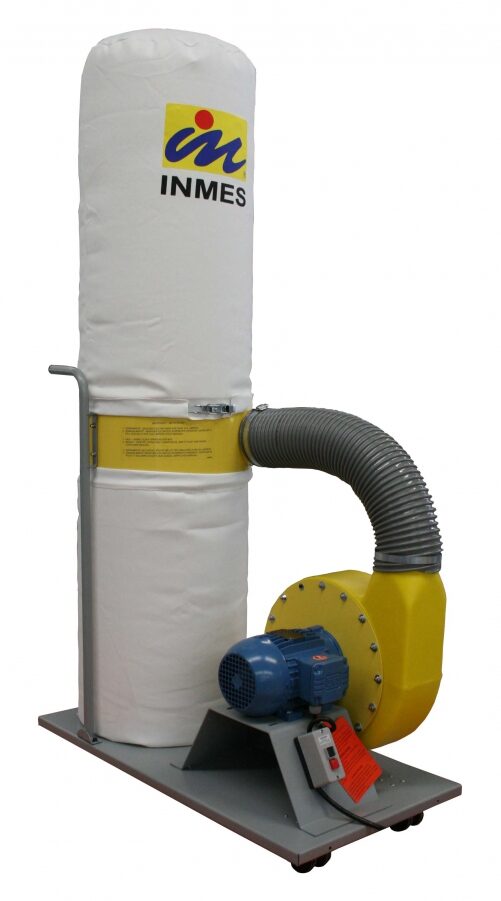

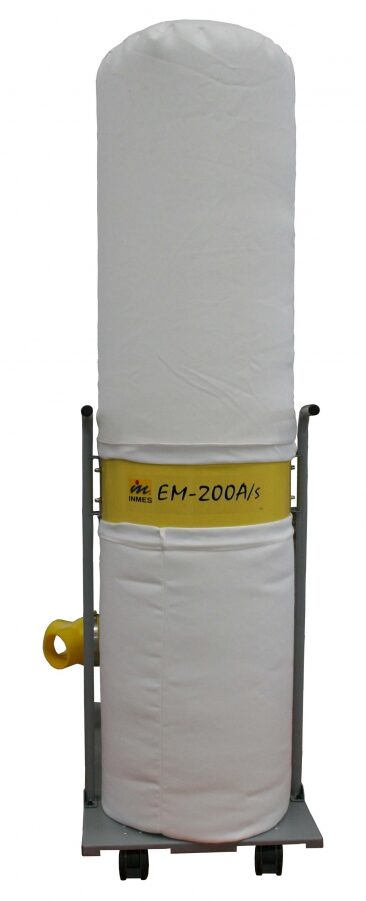

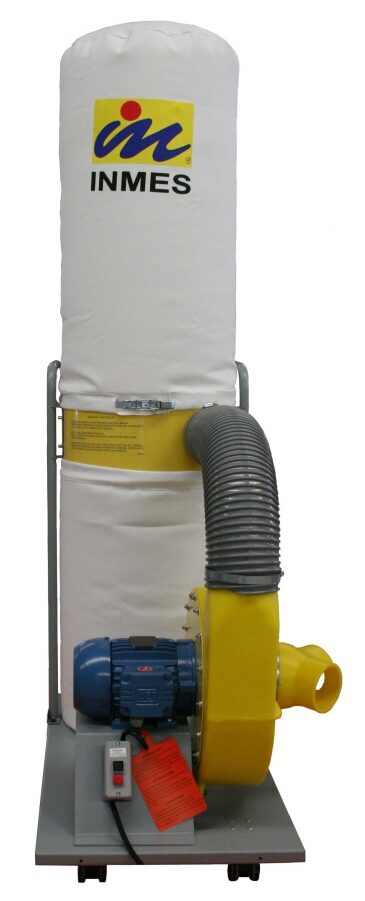

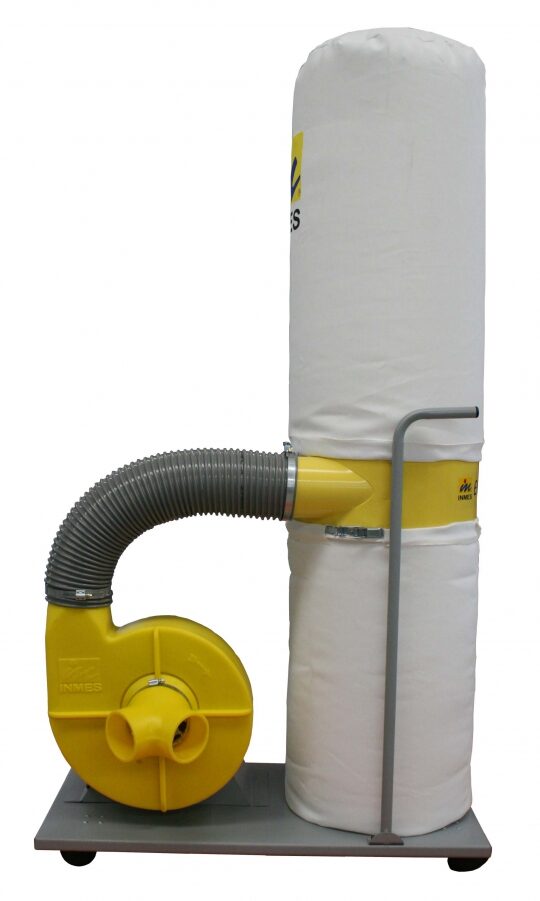

Dust Collector EM-200 A
The EM-200 A hood has efficient capacity and guaranteeing a clean environment is essential to provide greater durability of the equipment in the factory.
The EM-200A hood is sold with two 100 mm (4 ”) inlets to connect one or more machines. Built in steel plate with epoxy paint and equipped with 4 casters, it is an ideal compact device to connect to small and medium sized equipment.
FAN
The Inmes exhaust fan is made of aluminum. Greater durability and less risk of spark generation.
CARCASS
The EM-200 A hood housing is made of special, high-resistance, low-friction and lighter plastic.
* Compact equipment;
* It has four wheels for moving the equipment, two fixed and two swivel with lock;
* Housing made of high-strength, low-weight plastic;
* It has an inlet of 125 mm (5 ”) or two 100 mm (4”);
* Low noise (See Table);
* Steel structure painted with epoxy paint. Provides better finish to the equipment and longer service life;
* Filter with permeability 150 l / min.dm² at 20 mm CA.
TECHNICAL SPECIFICATIONS:
Obs.:Equipment to be used in a medium-sized machine; It does not come with hoses or air ducts. Consult the factory about the types of dust that can be used.
*Merely illustrative images.
