Drill-IF 4

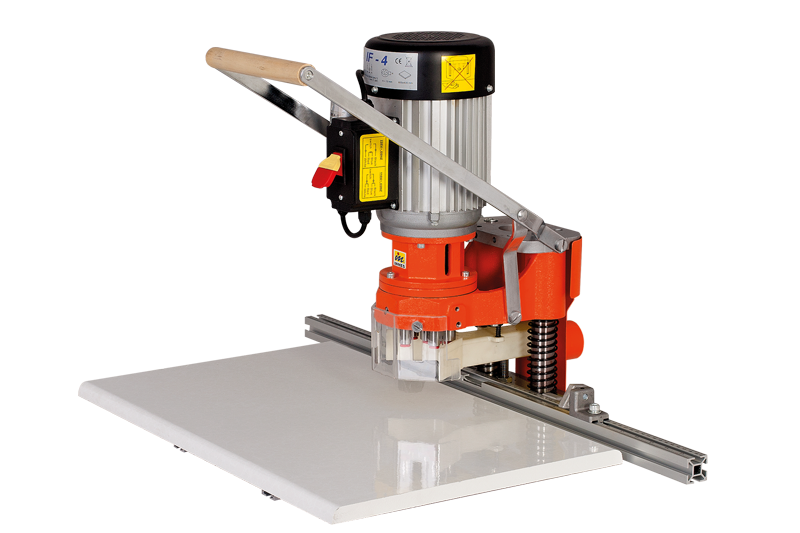

The IF-4 Drill Machine was developed to meet the needs of carpenters in drilling for fixing hinges, in the 48 mm measurement system, and furniture assembly devices.
The IF-4 Drill Machine was developed to assist carpenters in their drilling needs for fixing hinges, no measurement system 48 mm and furniture assembly devices.

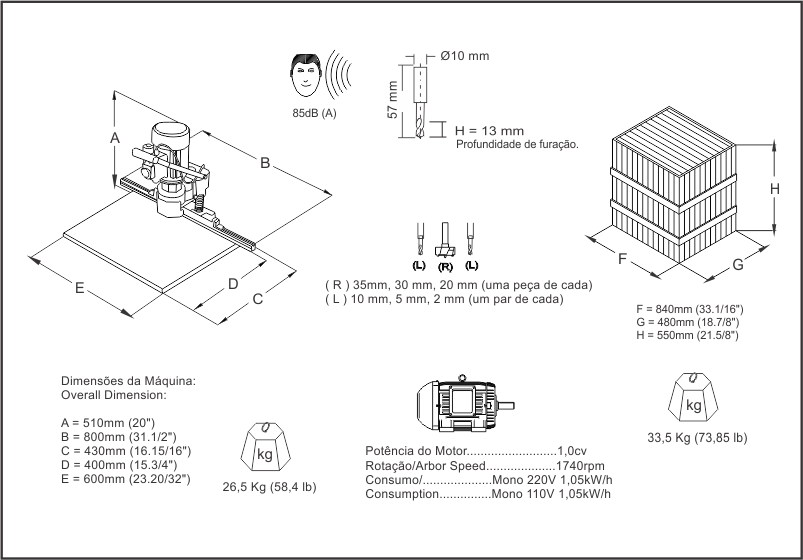

DRILLING DIMENSIONS
SCALES
The IF-4 Drill Scales are easy to see, making it easier to adjust the drilling position.
STOPS
The stops that come with the IF-4 drill are of the pendulum type, making the work easier, as they automatically retract when drilling is needed in two positions.
KEY
The on/off switch of the IF-4 drill is easy to access and has an emergency key attached to it.
DUST PICKUP OUT
The output of the dust catcher is easy to connect, with a diameter of 50 mm (2”).
DUST PICKUP
The dust collector and protection of the IF-4 drill automatically adjust to the height of the piece to be drilled.
* 6 drilling chucks;
* Rulers with measurements in millimeter and inch;
* Dust outlet diameter 50 mm (2″);
* Comes with 2 easy-adjustable stops;
* Wide support table;
* 1 hp engine;
* Possibility of connecting to 220V or 110V;
Note: Follow:
1) 2.5 and 6 mm hexagonal wrench
2) Screw for fixing the machine;
3) 1 35 mm straight drill;
4) 1 20 mm straight drill;
5) 2 left 10 mm drills;
6) 2 left 5 mm drills;
7) 2 left 2 mm drills;
8) 2 adapted for 2 mm drill.
