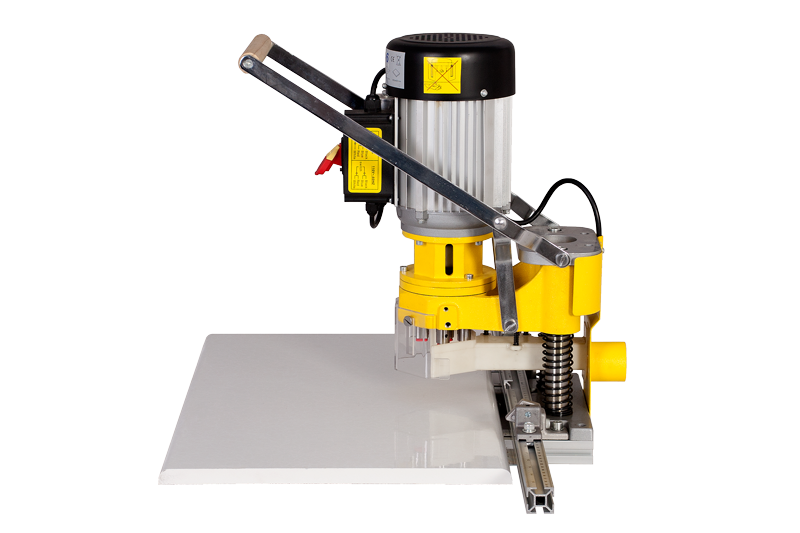

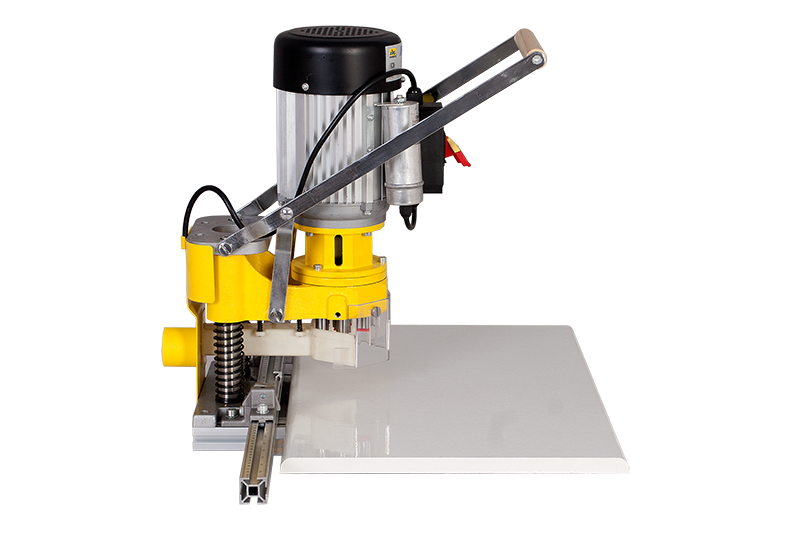

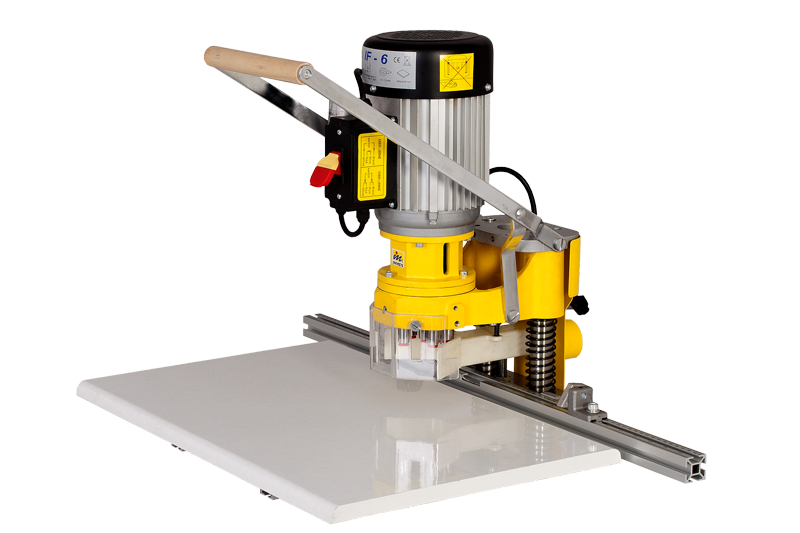

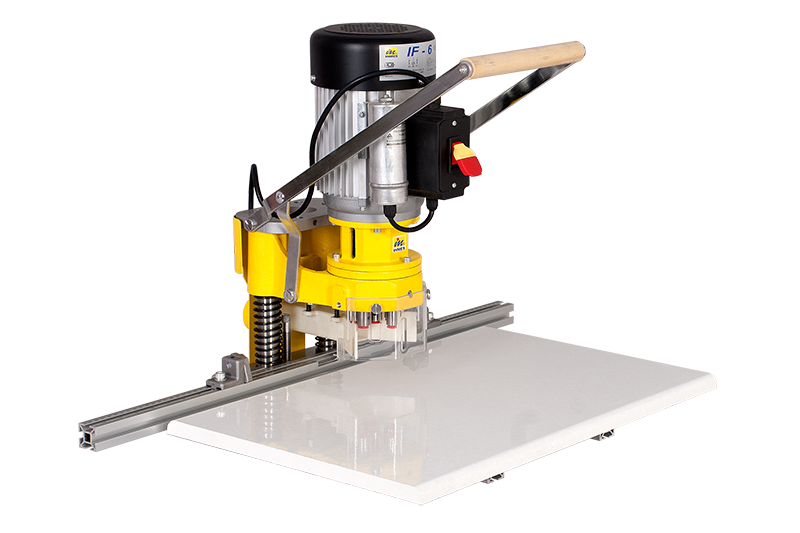

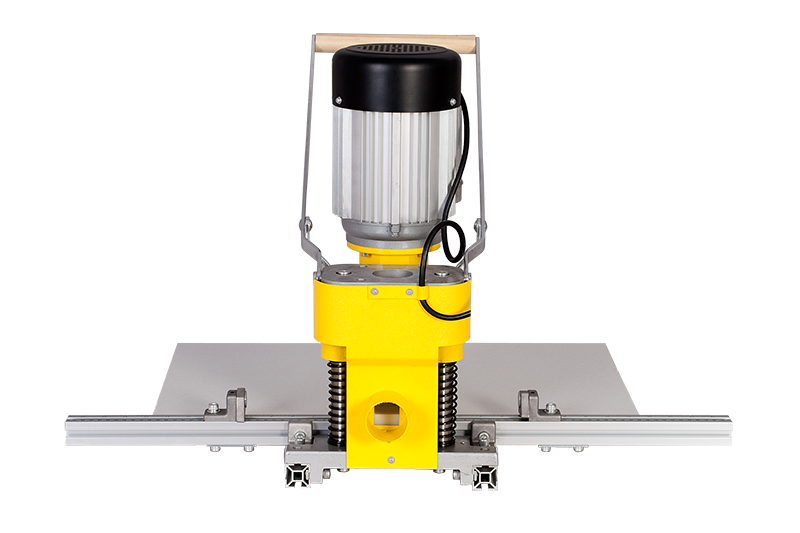

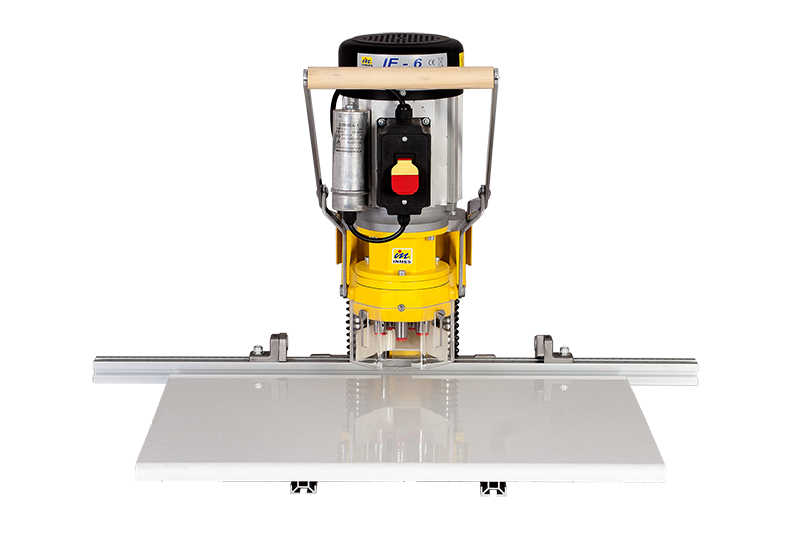

Drill IF-6
The IF-6 Drill is ideal for drilling 52mm hinges and furniture mounting devices.
The IF-6 Drill was developed to meet the carpenter's drilling needs for fixing hinges, in the 52 mm measurement system and furniture assembly devices.
DRILLING DIMENSIONS
As shown in the image, the IF-6 drill performs standard 52mm holes.
DUST PICKUP
The IF-6 drill dust catcher and guard automatically adjust to the height of the part to be drilled.
FLAP
The stops that come with the IF-6 drill are of the pendulum type, facilitating the work, as they automatically retract when the need for drilling in two positions.
SCALES
The scales of the IF-6 Drill are easy to see, making it easy to adjust the drilling position.
DUST PICKUP OUT
The output of the dust catcher is easy to connect, with a diameter of 50 mm (2”).
KEY
The on/off switch of the IF-6 drill is easily accessible and has an emergency switch attached to it.
SEE MORE IF-6 INFORMATION:
* Six drilling chucks;
* Diameter of powder outlet 50 mm (2″);
* Rulers with measurements in millimeter and inch;
* Comes with 2 easy-adjustable stops;
* Wide support table;
* 1 hp engine;
WILL ACCOMPANY THE MACHINE:
1) 2.5 and 6 mm hexagonal wrench
2) Screw for fixing the machine;
3) 1 35 mm straight drill;
4) 1 20 mm straight drill;
5) 2 left 10 mm drills;
6) 2 left 5 mm drills;
7) 2 left 2 mm drills;
8) 2 adapted for 2 mm drill.
TECHNICAL SPECIFICATIONS:
* Merely illustrative images.
